How to create a custom door for your CI tools Cabinet

Customised doors can be created following these steps:

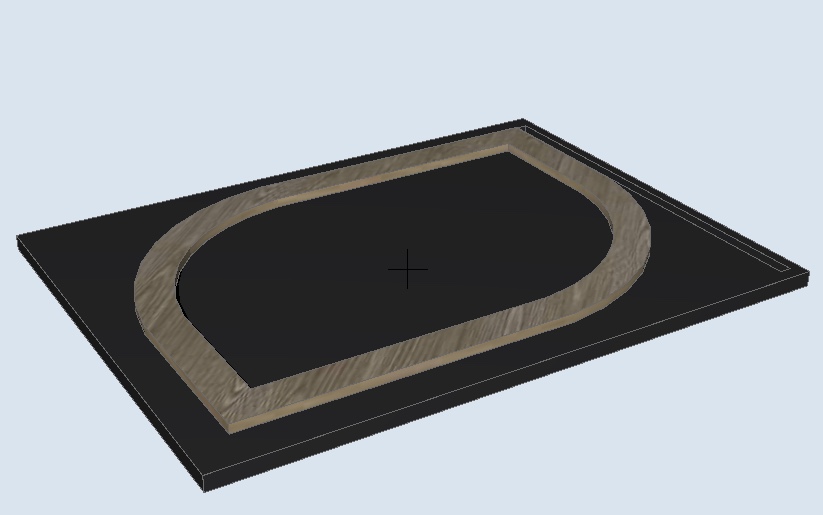

• Design your customised door to design the overall shape use drafting lines and then use slab or morph tool to add the general parametric characteristics ( width, hight, depth and finishes).

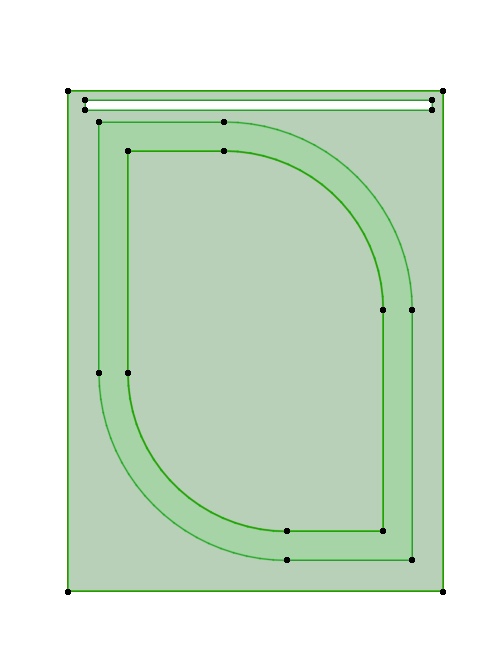

Plan view

3D view

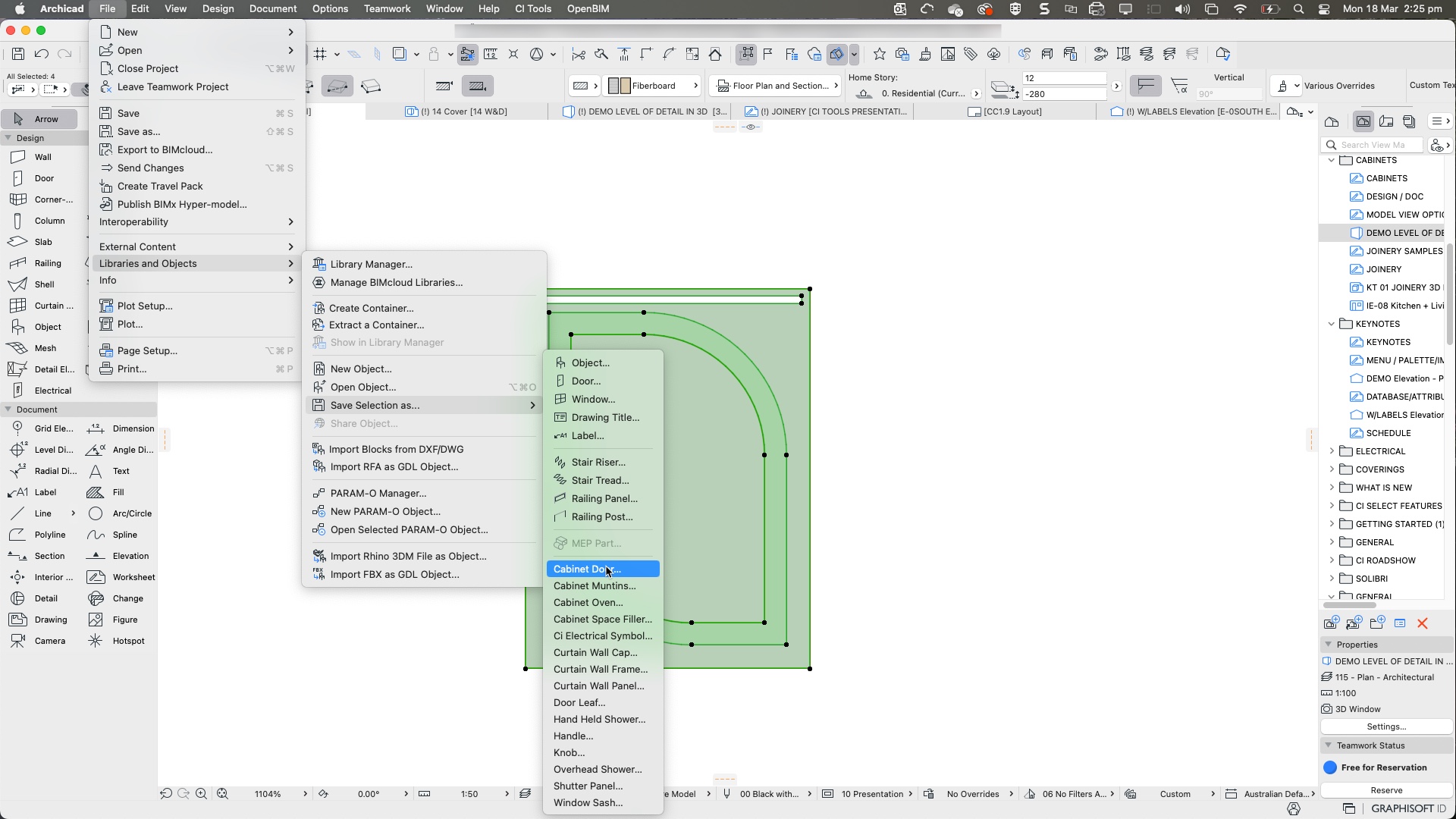

• Save your cabinet door: Go to File> Libraries and Objects . Save selection as.. Cabinet Door

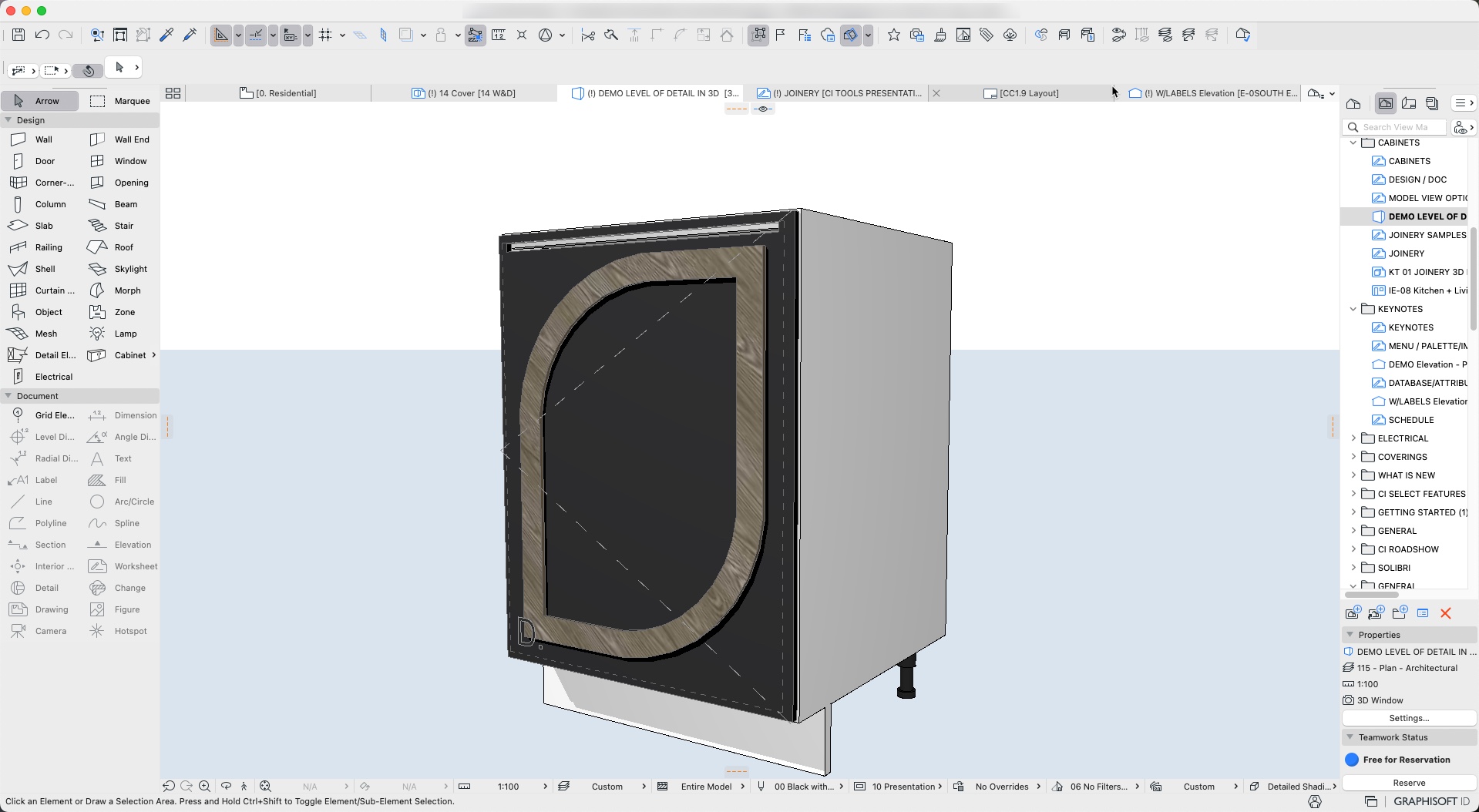

Your new door will be created and saved on your Embedded Library:

• A message saying the Cabinet Door will be available for elements in which this setting is recognised or available.

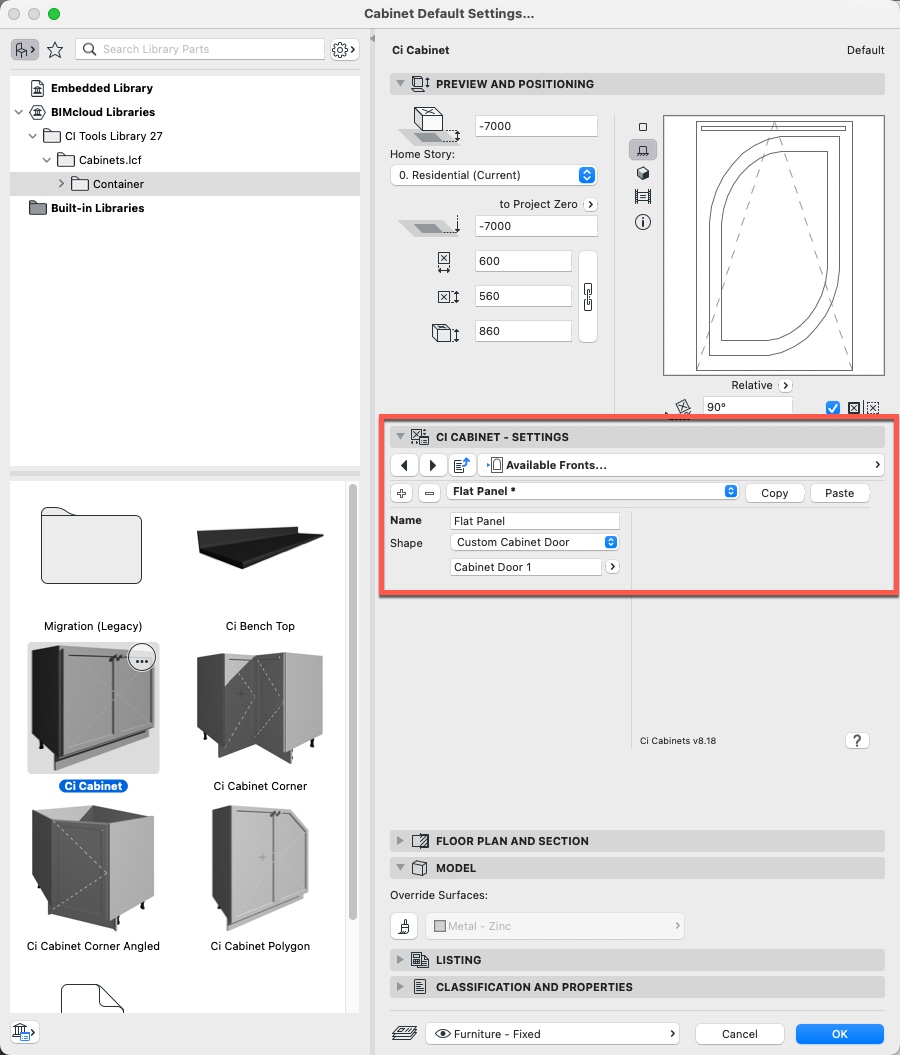

• Then open the cabinet tool. Go to the Ci Cabinet -Settings> Available fronts> Shape and choose custom Cabinet Door.
