Introducing the Ci Structural Tool

From Archicad 28, the Objective tool has ceased to exist, however many of the functions and Library parts that were previously part of the Objective Tool have moved to the Structural Tool.

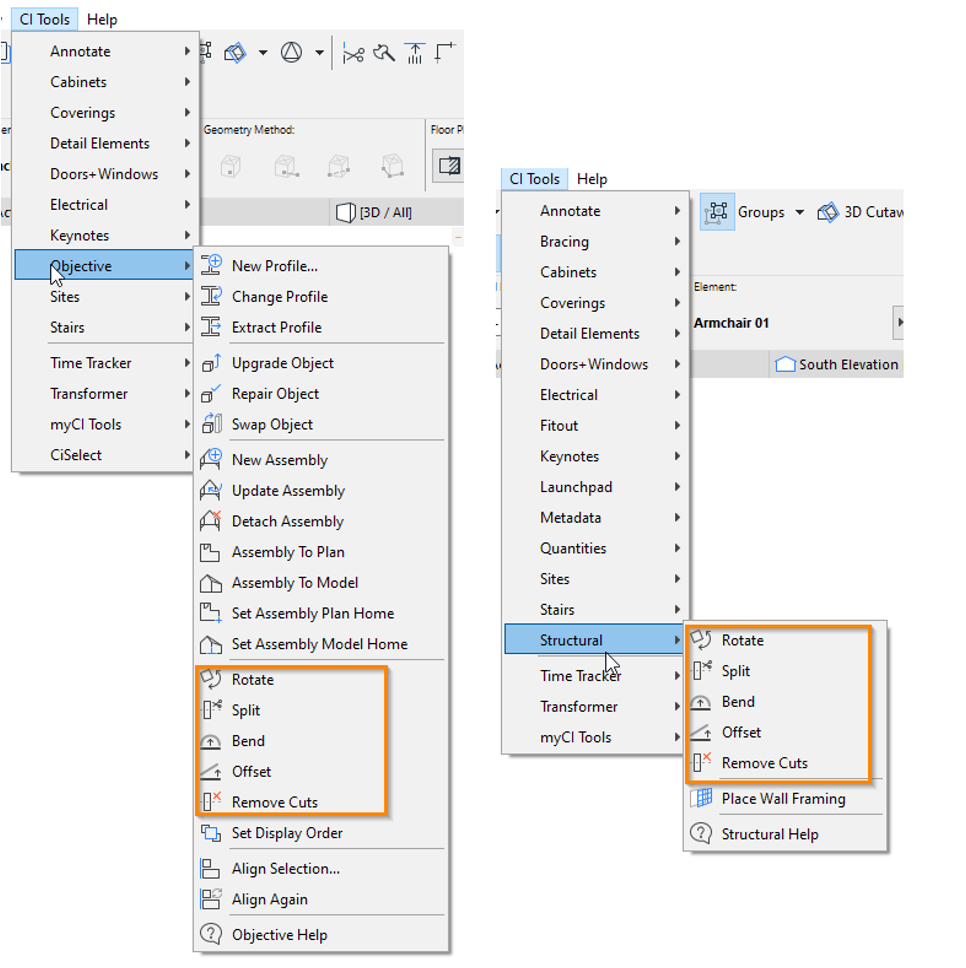

The standard functionality of Rotate, Split, Bend, Offset and Remove Cuts, have been retained in the Structural Tool, and function just as they did in the Objective Tool.

With advancements since the release of Archicad 26, the Complex Profile functions can now be performed natively within Archicad, so we recommend using those to Create and Extrude profiles.

A whole range of library parts that previously resided in the CI Select library has also been moved to the Structural Library.

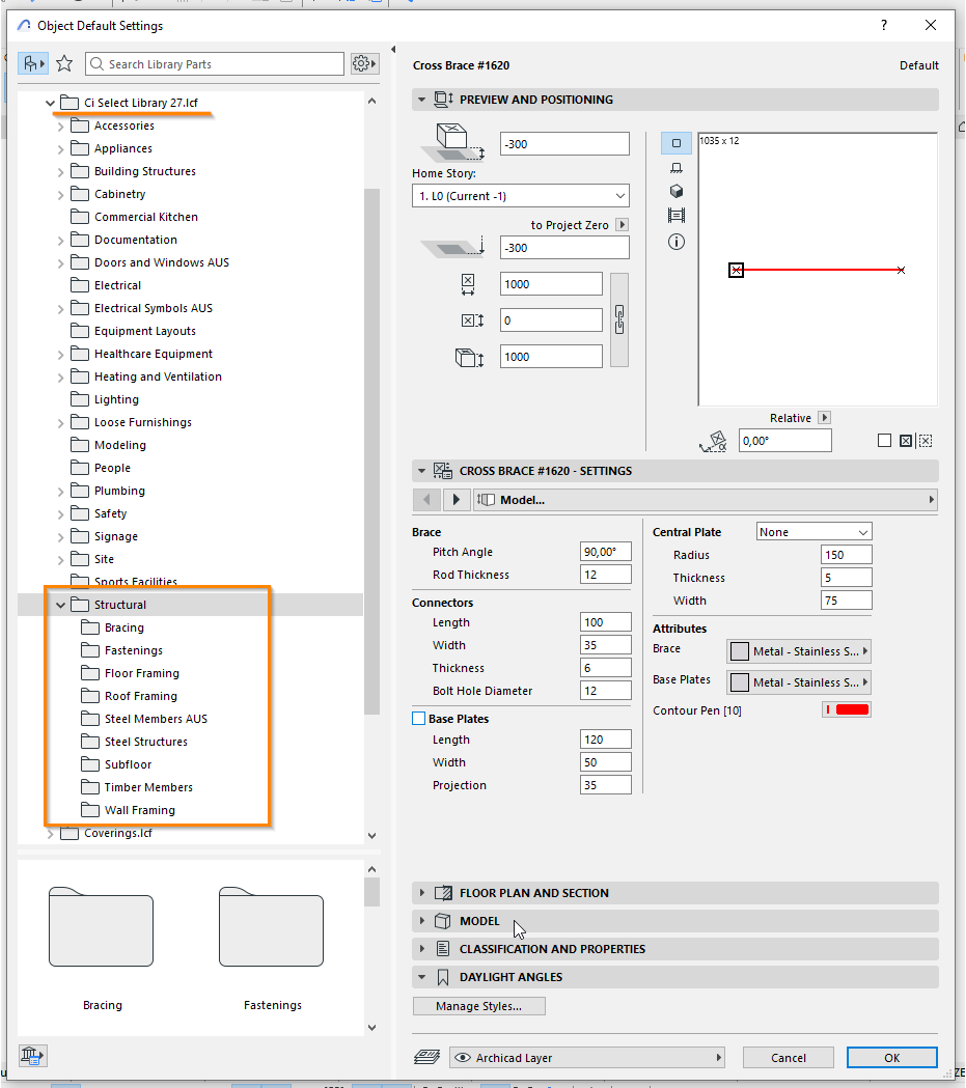

The list below includes all the Library parts that have been moved to Structural Library, these are all the parts previously found in the  CI Select 27 Library/Structural/  folder (See image below list of the Archicad 27 location of these Library parts)

• Cross Brace #1620
• Engineers Bolt 3D #1396
• Screw #1593
• Screw #1596
• Screw #1597
• Gib Handibrac #1602
• Joist Hanger 95x165 #1606
• Nail #1607
• Joist Hanger 70x180 #1608
• Joist Hanger 47x190 #1609
• Joist Hanger 47x120 #1610
• Joist Hanger 47x90 #1612
• Anchor Bolt 3D #1625
• Multi Grip #1630
• Mitek Bowmac Post Bracket #1993
• Mitek Tylok Nail Plate #1998
• Mitek Bowmac Strap #1999
• Floor Framing #1623
• Floor Framing #1943
• Scissor Truss #1992
• End Truss # 1652
• Rafters # 1653
• Rafter Truss #1654
• Purlin #1655
• Girder Truss # 1656
• Jack Truss # 1657
• Truncated Girder Truss # 1658
• Truncated Truss # 1659
• Attic Truss # 2012
• Creeper Truss #2066
• Rafter Truss #2067
• Girder Truss #2068
• Truncated Girder Truss #2069
• Monopitch Truss #2070
• End Truss #2071
• Truncated Rafter Truss #2072
• Valley Saddle Truss #2073
• Flying Rafters #2074
• Hip Truss #2075
• Plain Channels #1739
• Cees and Zeds #1741
• Equal Angles #1745
• Lipped Channels #1746
• PFC Horizontal #1747
• PFC Vertical #1748
• Solid Beam or Column #1750
• Tee Section Beam or Column #1751
• Tube Rafter #1752
• Unequal Angle #1753
• Portal Frame #1754
• Speedfloor Beam #1756
• Steel Portal Frame #1941
• Delta Truss #1973
• Portal Frame #2024
• House Pile #1929
• Plywood I-Beam #1757
• Posi Strut #1758
• Timber Member #1934
• Glulam Beam #1949
• Plywood Box Beam #1950
• Timber Lintel NZS3604 #1982
• Lintel #1991
• Wall Frame #2013

These are now located in the following folder in Archicad 28.
