Reference Guide - Modules

Modules

The Modules tab is where the finer detail of the Cabinet Module can be set, this will determine all aspects of the specific module sizing and divisions, type, panel and handle types. These are all set from different menus indicated by an icon. Please see image below.

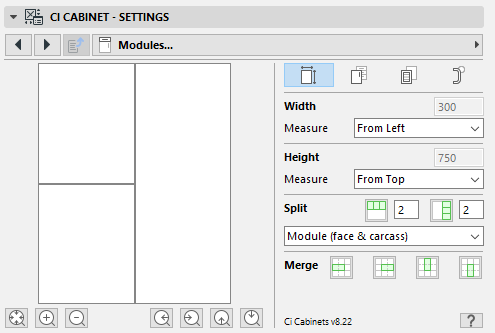

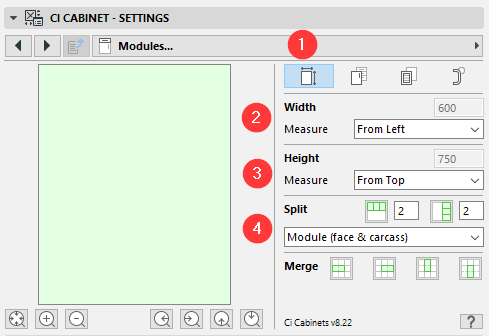

Dimensions

1. In the first Instance the following settings can be adjusted:

2. Measurement Justification can be set from left, right or proportionally.

3. Height measurement can be set to be from the top, bas or proportionally

4. Selected modules can be split or merged as required.

Please see image below after the Panel has been split once vertically and then again one split horizontally.

Module Type

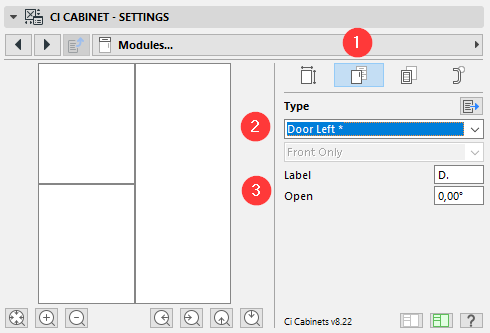

1. The second icon allows for various selections to be made:

2. The type of module that is required. We will explore this in more detail.

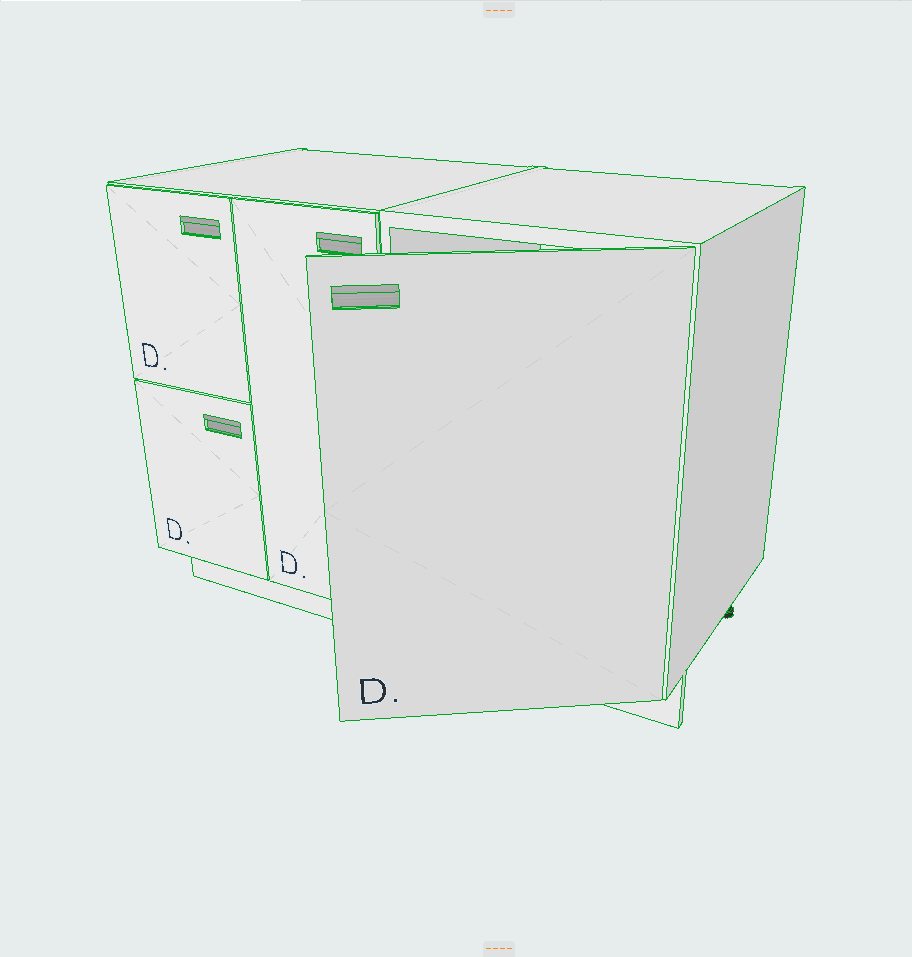

3. The Label to be displayed on the model and the opening of the chosen Module type.

(Please note that global opening or closing of all module types can be controlled from the Model View Settings for Cabinets Under Document >Model Views Options >CI Cabinets)

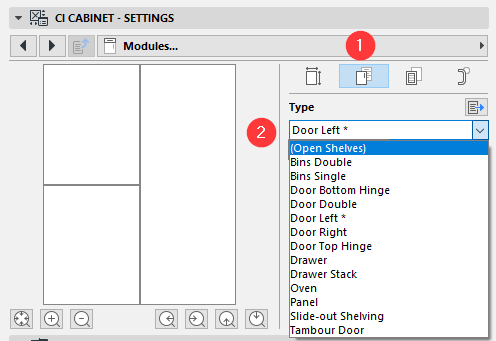

As mentioned under the Second Icon Selection a whole range of options become available.

(Note the asterisk indicates the currently selected)

These Options Include:

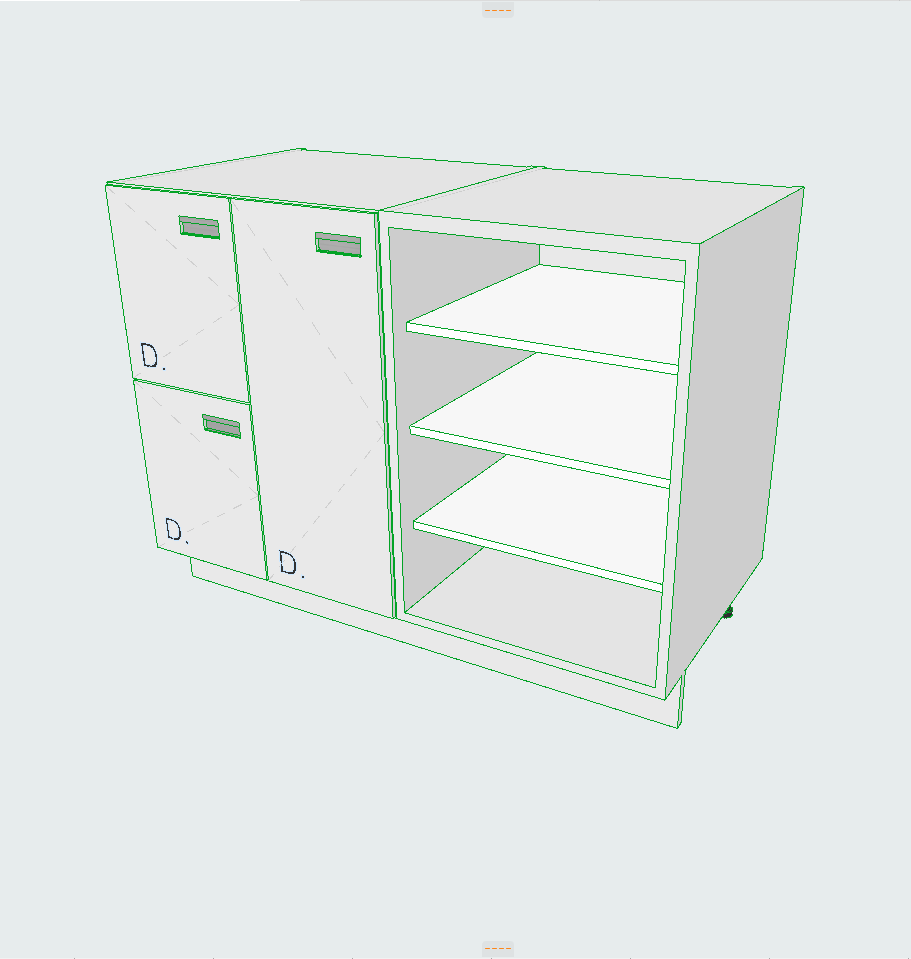

Open Shelving - No Door or Closer added to front

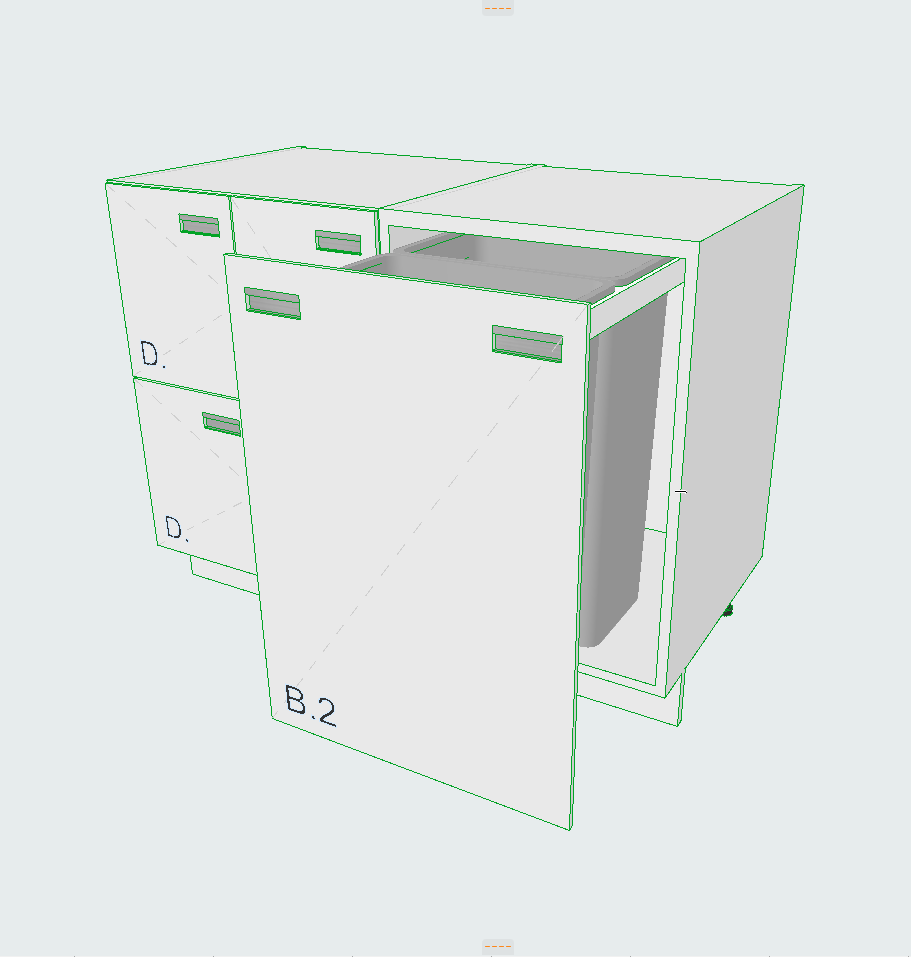

Bins Double - Double set of waste bins.

Bins Single - Single waste bin

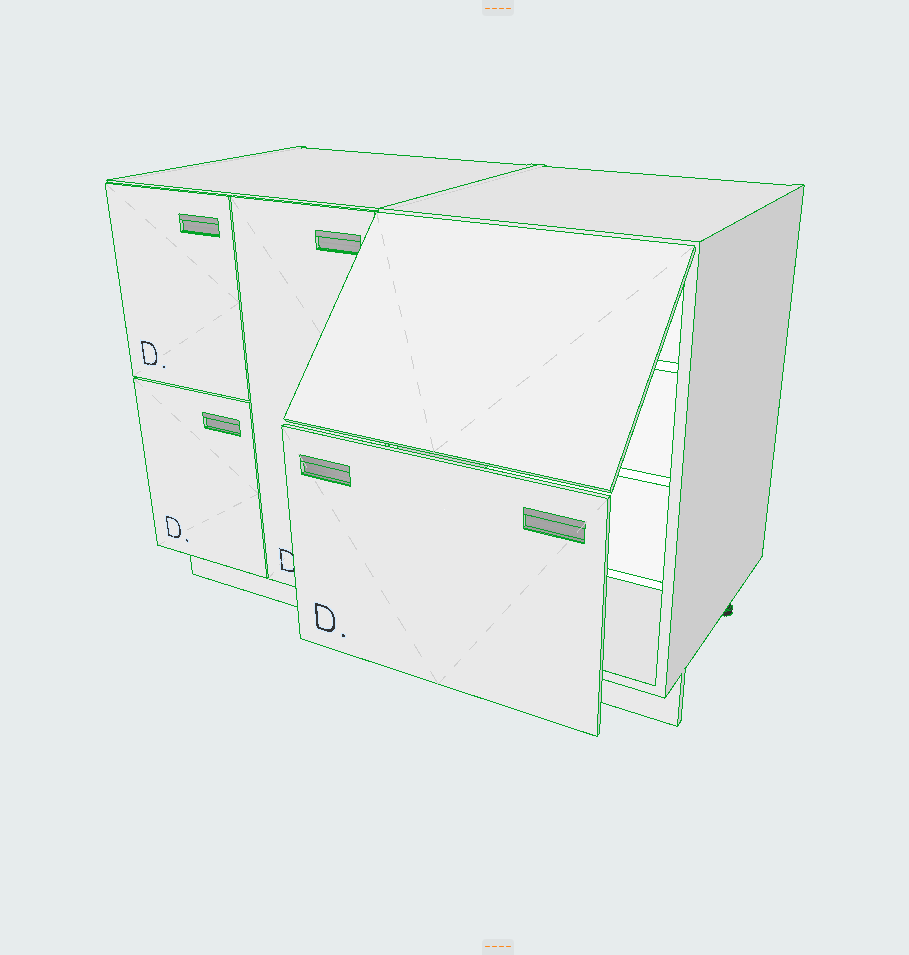

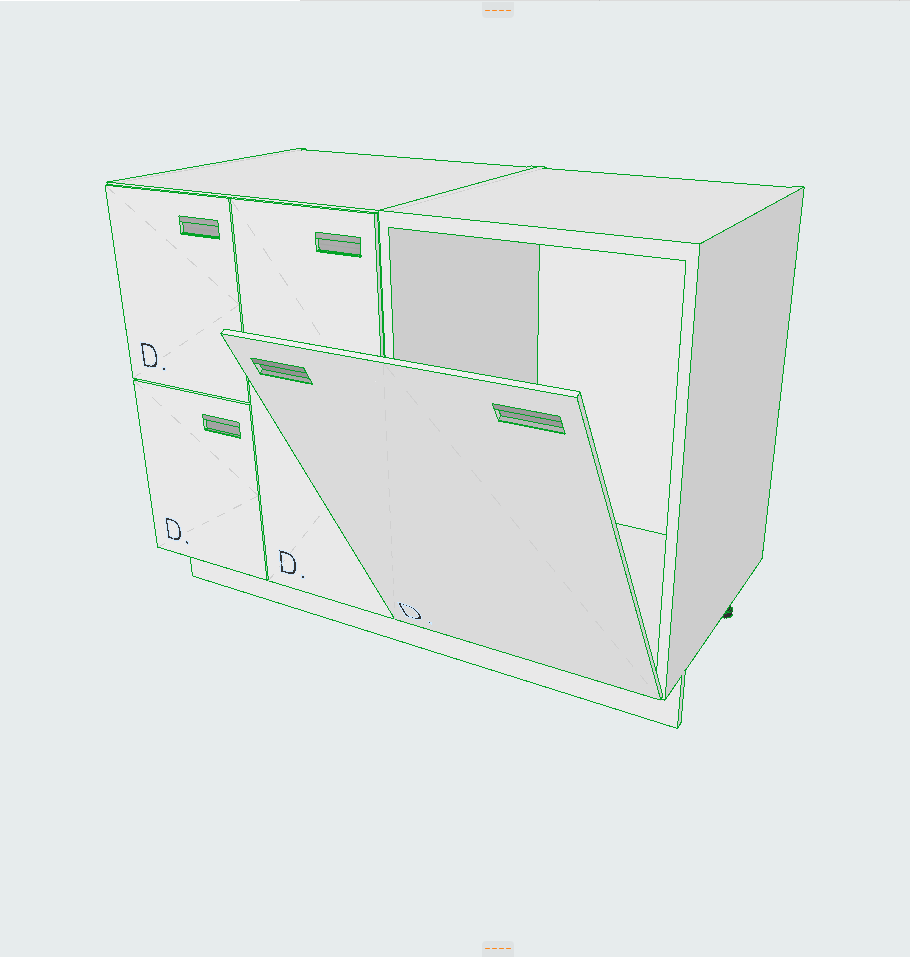

Door Bottom Hinge - Door with hinges placed at the bottom

Door Double - Double door, one left hinged, one right hinged.

Door Left - Door with a hinge to the Left.

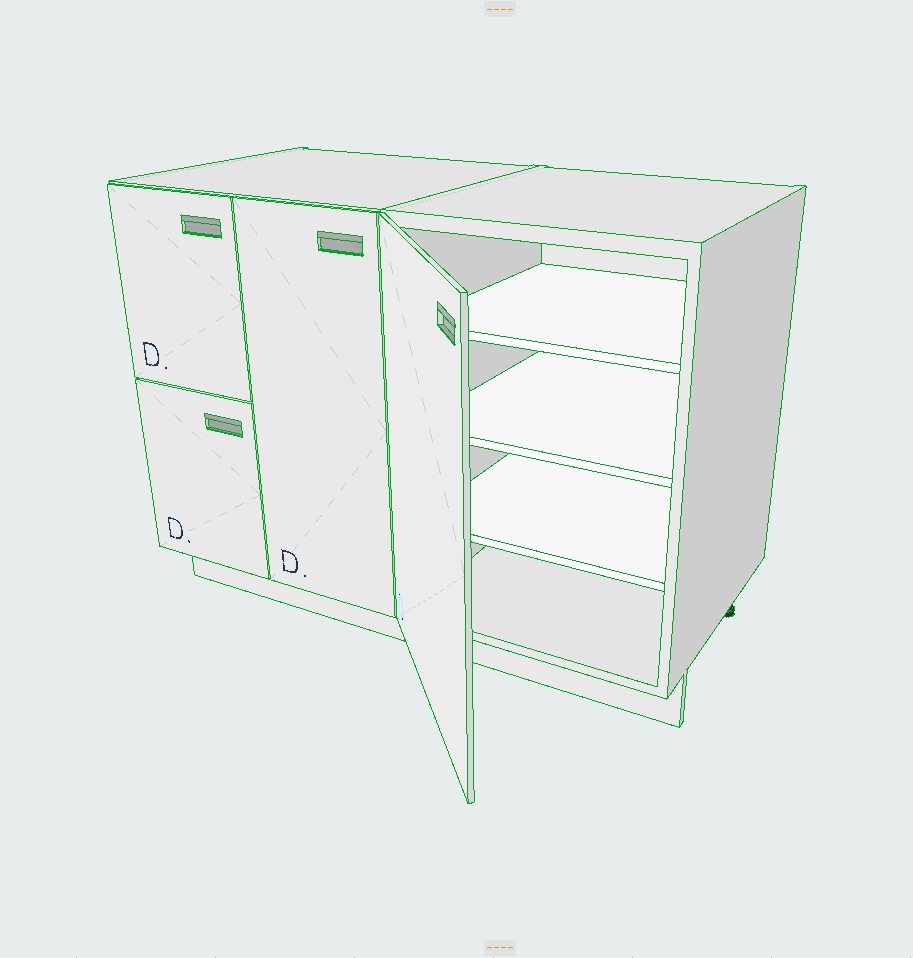

Door Right - Door with a hinge to the Right.

Door Top Hinge - Bi-fold door with Hinge placed at the top.

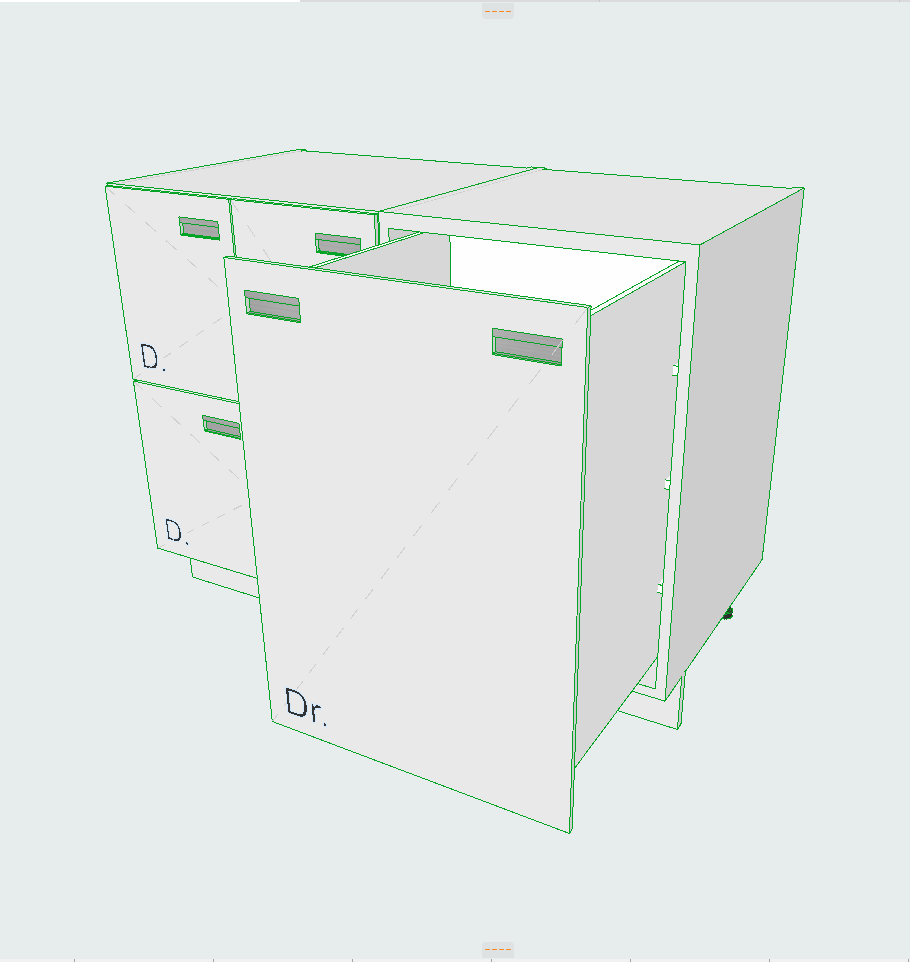

Drawer - Entire module as a single drawer.

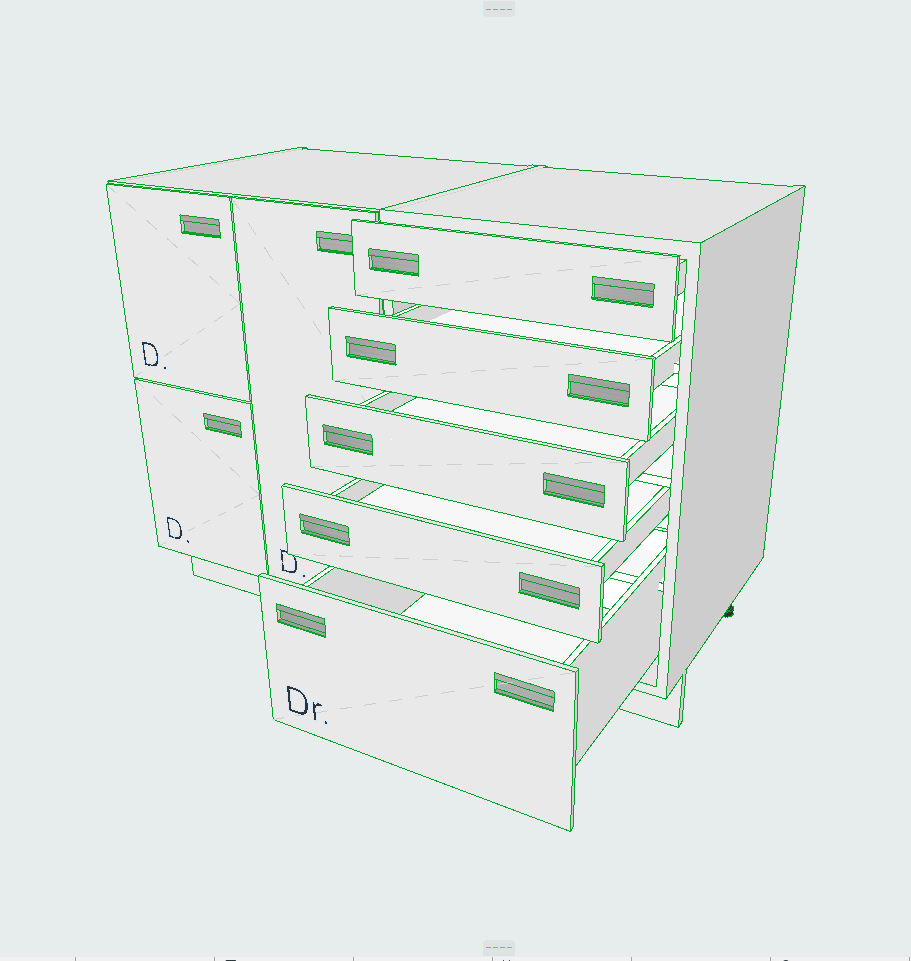

Drawer Stack - Set of drawers (as defined in Available Module Types).

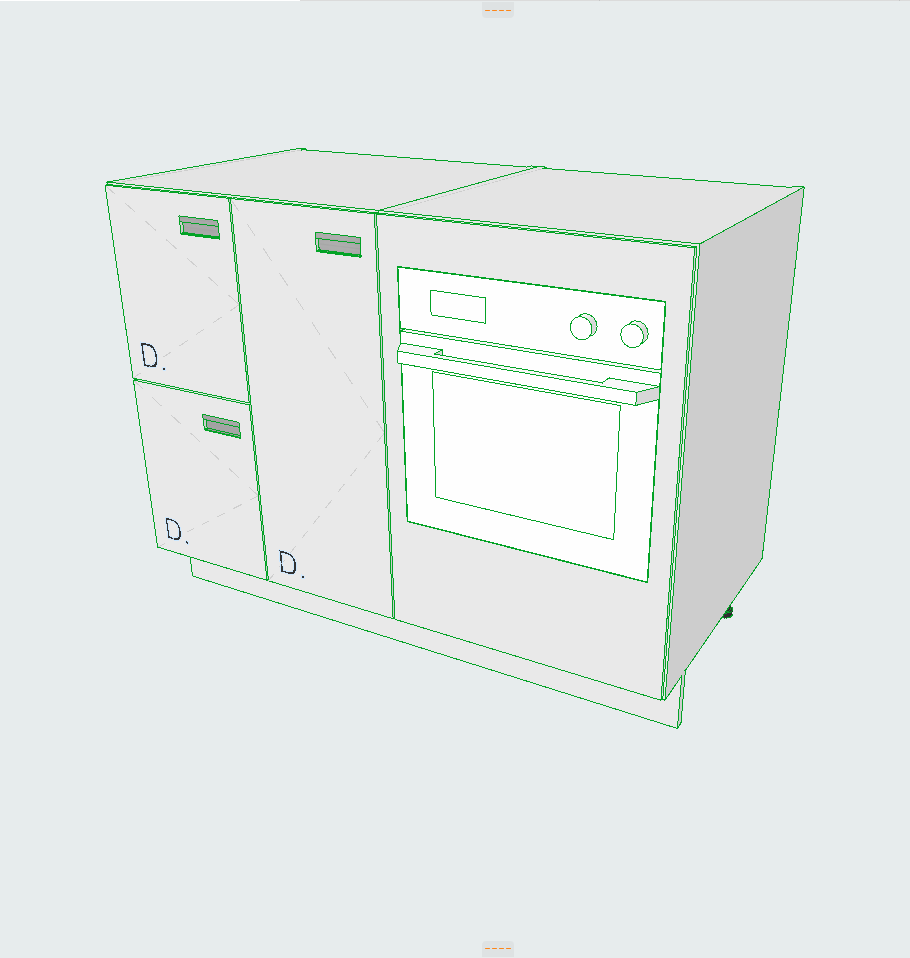

Oven - Places and oven (as defined in Available Module Types).

Panel - Places a panel that can be defined under Available Module Types.

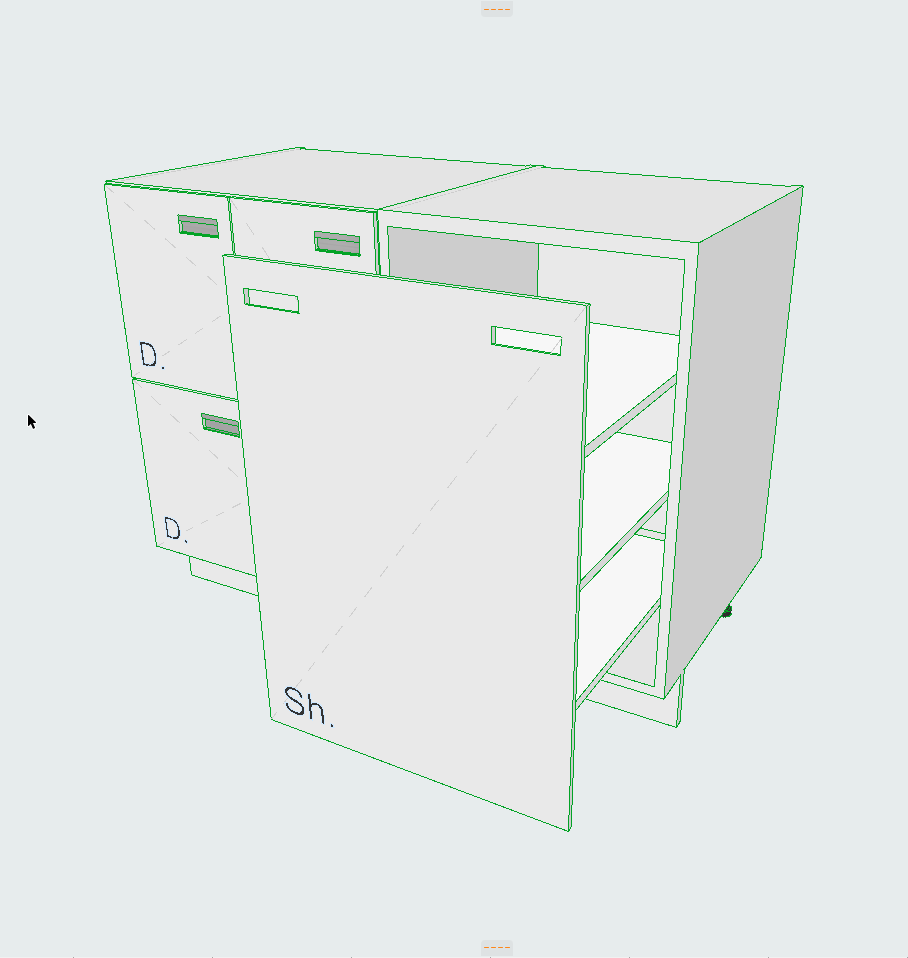

Slide out Shelving - Creates a slide out shelving Module

(*Note-Shelving must be placed under Shelves and Dividers)

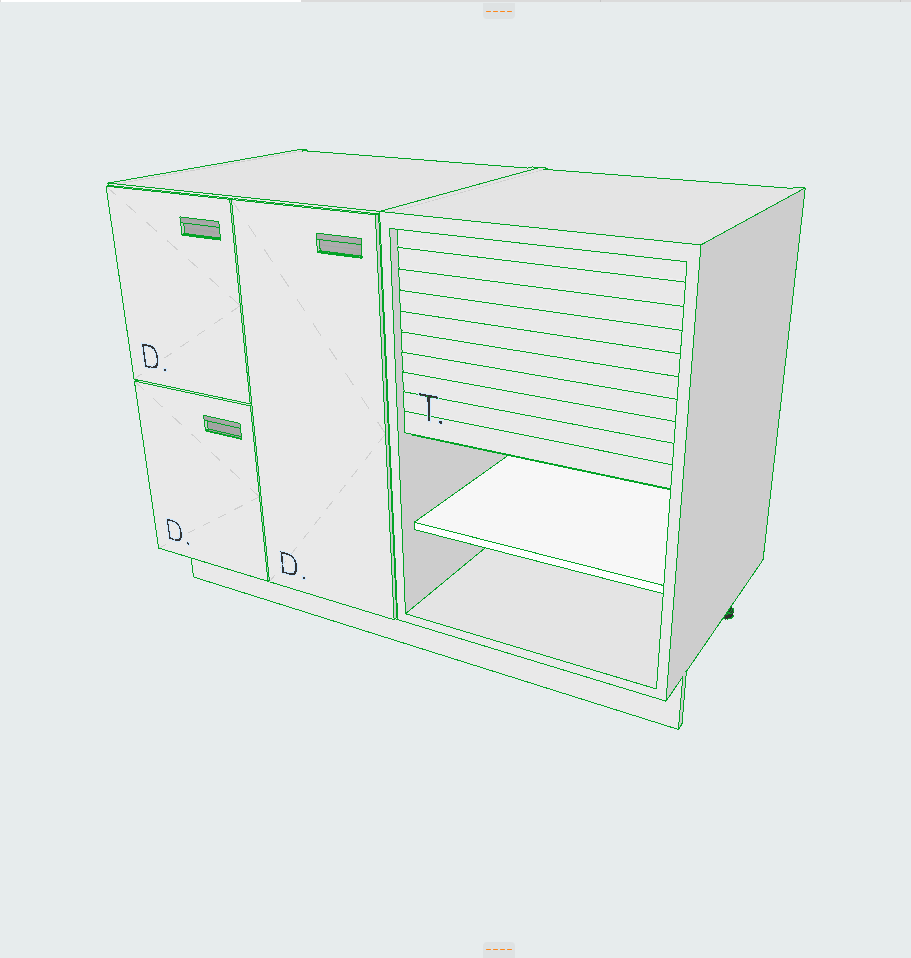

Tambour Door - Places a ‘Roll-up’ Style Tambour Door.

Panel Type

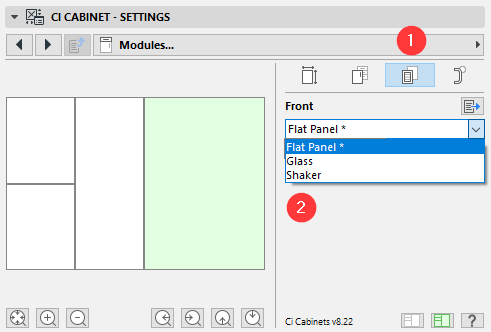

1. The next icon allows the selection of the panel type.

2. The Selection can be Flat Panel, Glass or Shaker.

Each Type is indicated below:

Flat Panel

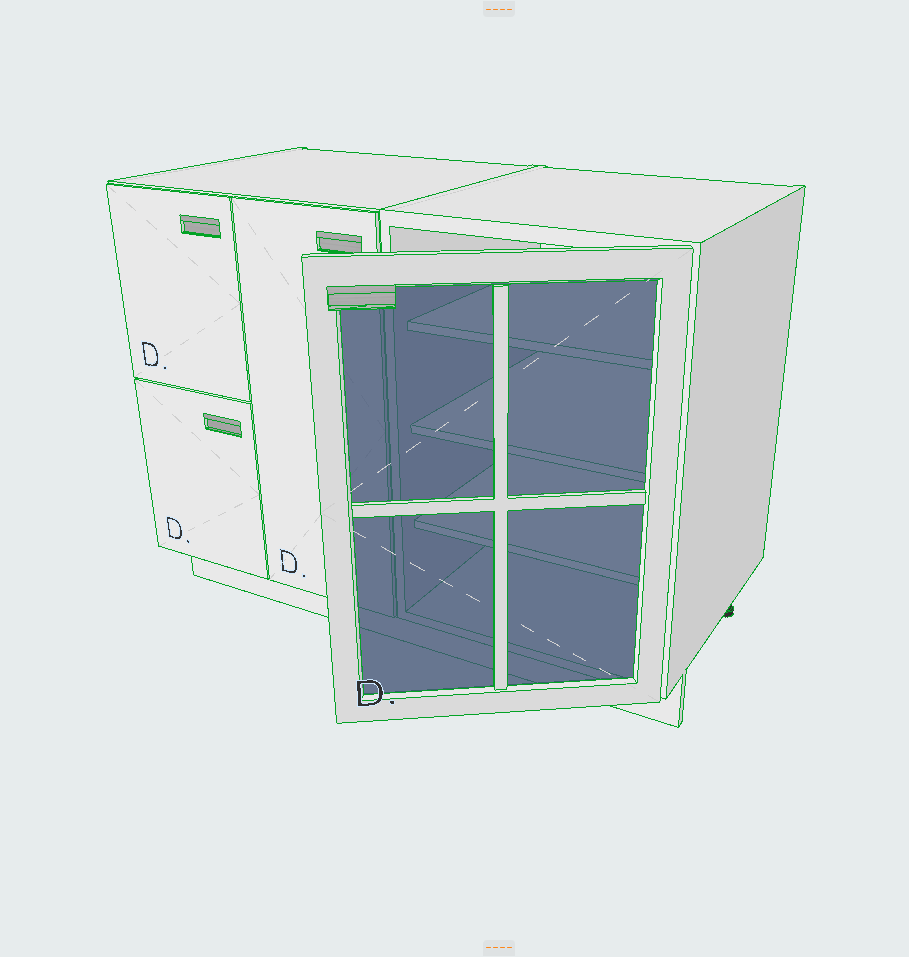

Glass

Shaker

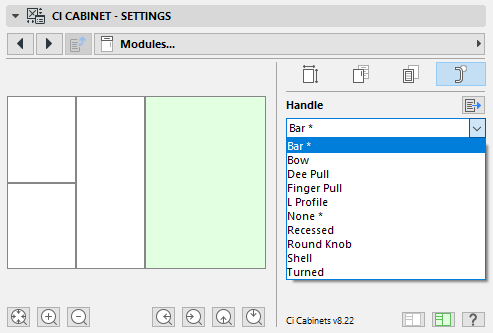

Handles

1. The fourth the last Icon.

2. A Handle type can be selected.

3. The size and position can be adjusted.

The choice varies as shown below:

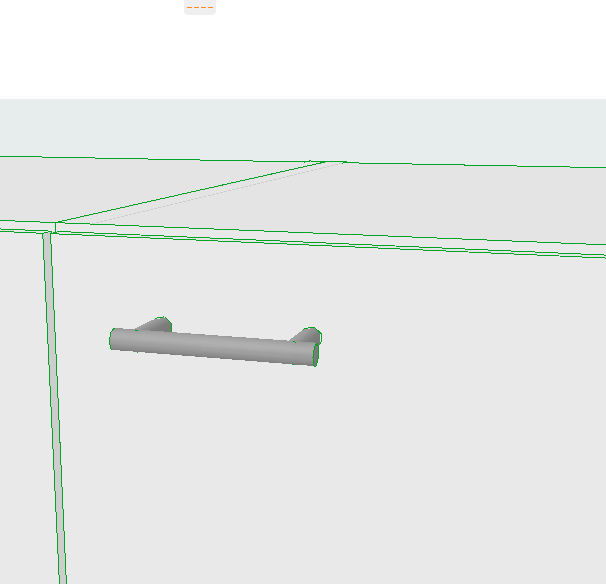

Bar

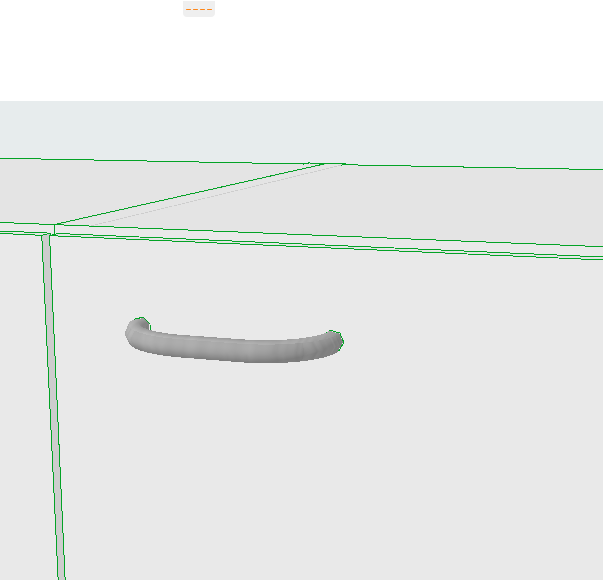

Bow

Dee Pull

Finger Pull

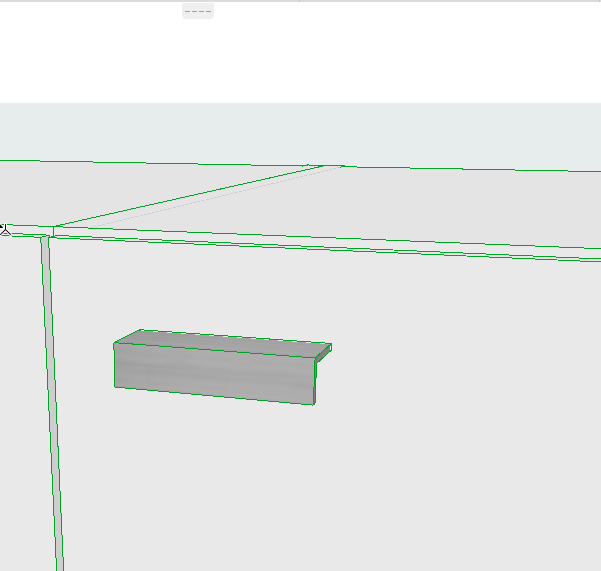

L – Profile

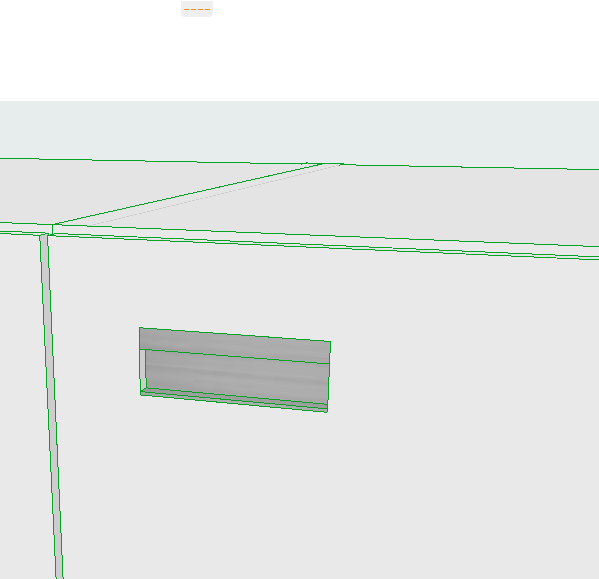

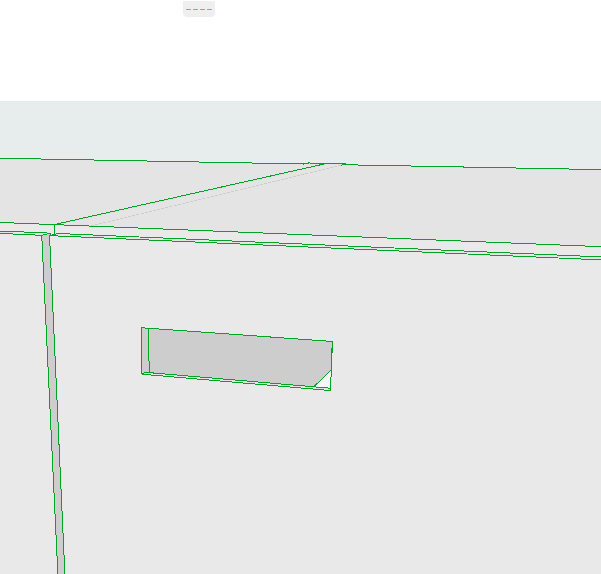

Recessed

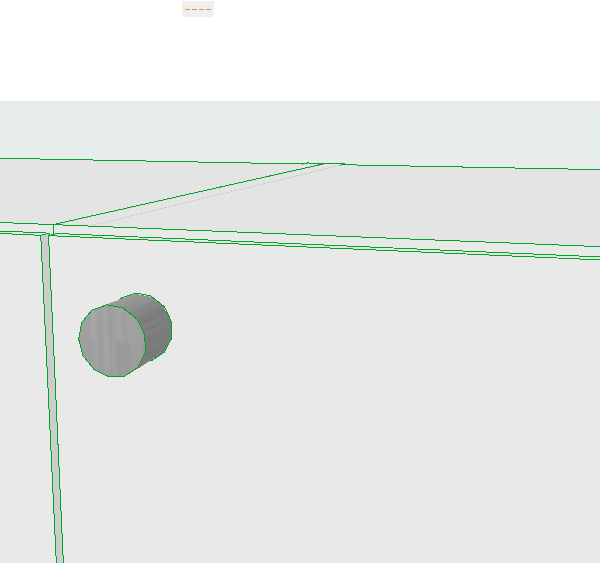

Round Knob

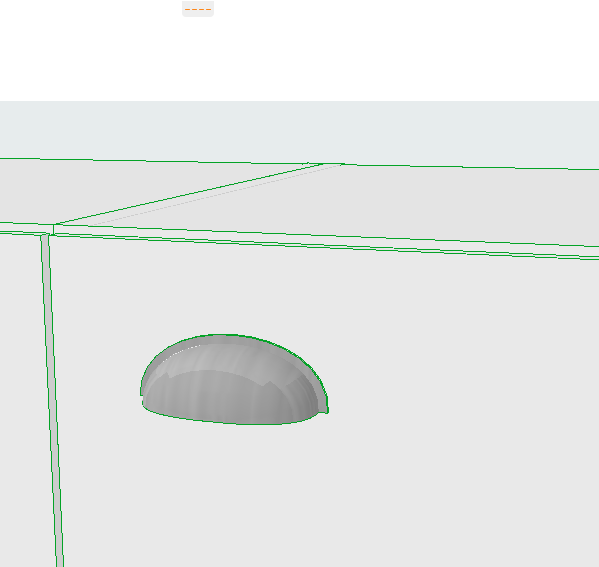

Shell

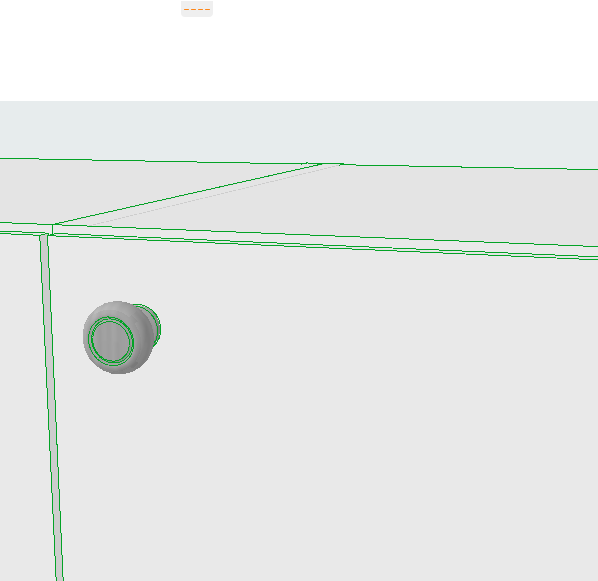

Turned
