Model View Options relating to Visibility strips.

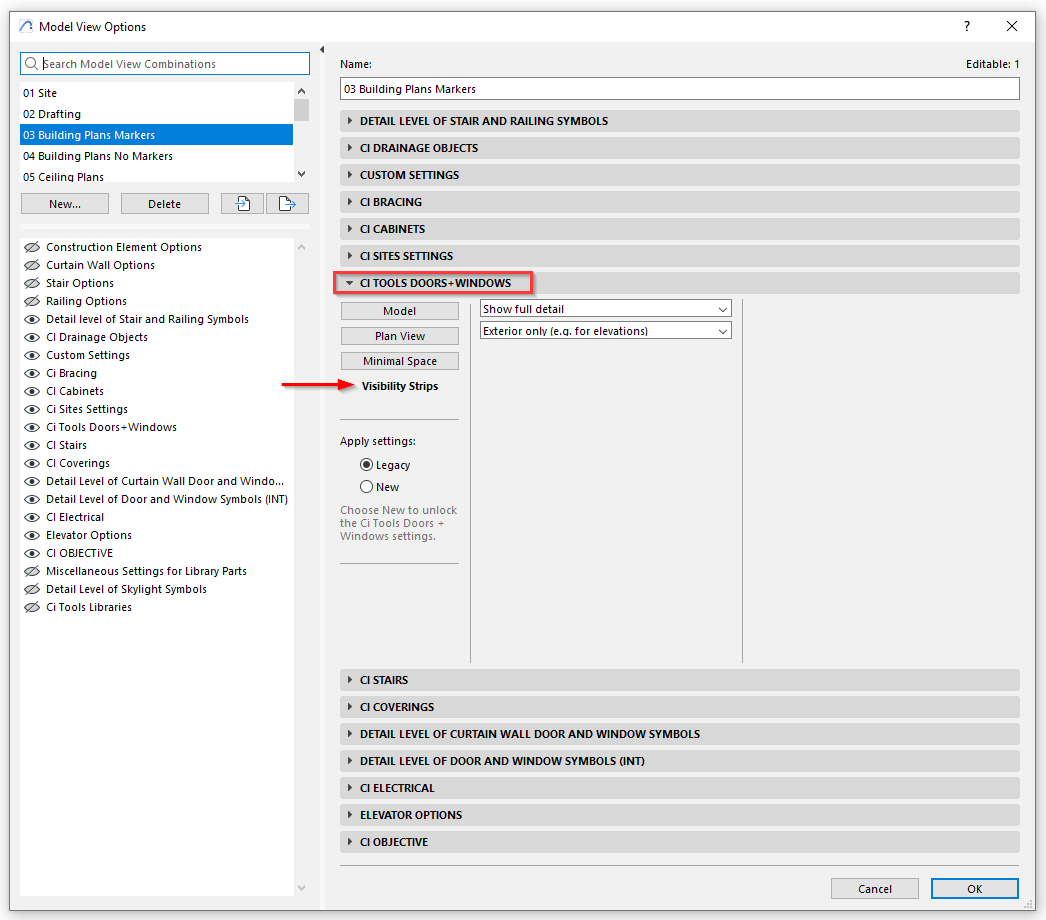

There are also overarching Settings that control Visibility Strips. There are located under the Document > Model View Options > CI Tools Doors + Windows > Visibility Strips. Please see image below.

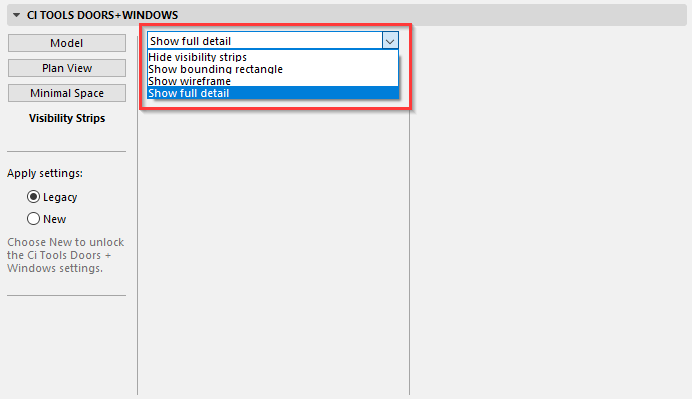

The user has the option to select either:

• Hide Visibility strips None Shown
• Show Bounding box Only a bounding bx shown
• Show wireframe Wireframe of Strip is shown
• Show full detail All detail is shown

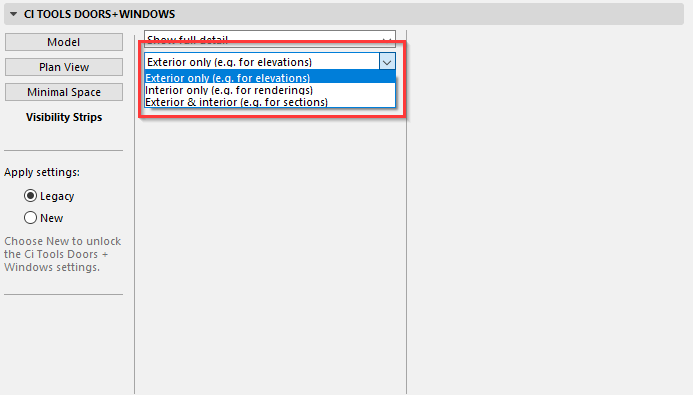

Secondly, there are three options available that determine on which side of the glazing panel the Visibility strip is shown.

The options are as follows:

• Exterior only The Visibility strip is only shown on the side designated as outside
• Interior only The Visibility strip is only shown on the side designated as inside
• Exterior and Interior The Visibility strip is shown on both sides

Please note that these settings will also apply to any Schedules that are created of these Doors.
