Curved Cabinet placement and basic editing

Once place, the Curved Cabinet allows you to Select and Edit its edges in both 2D Floorplan views, and in 3D

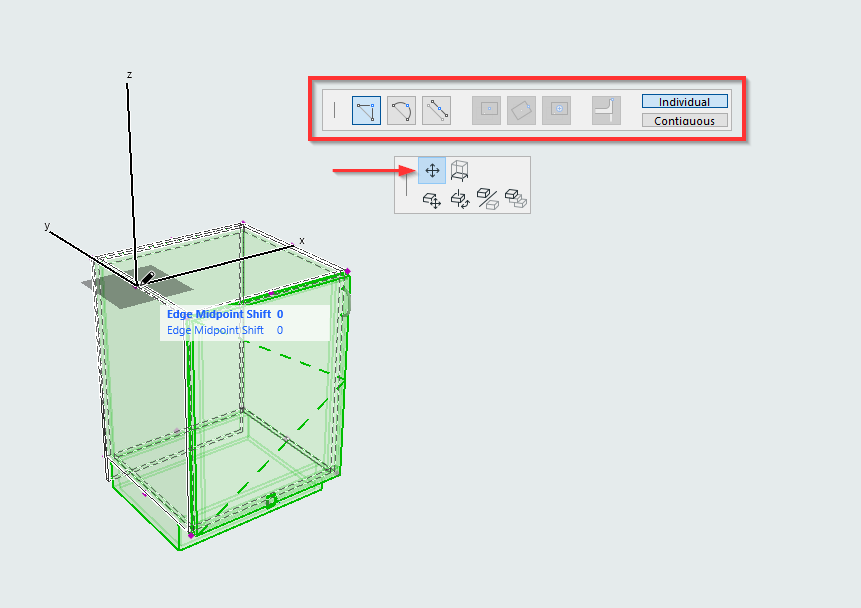

The first time you select an edge of a Cabinet, a palette will open, which lets you set the editing mode for the Cabinet.

Make that the standard Archicad palette is set to point adjustment as indicated by the arrow.

The Palette has three options available to edit Cabinet Edges

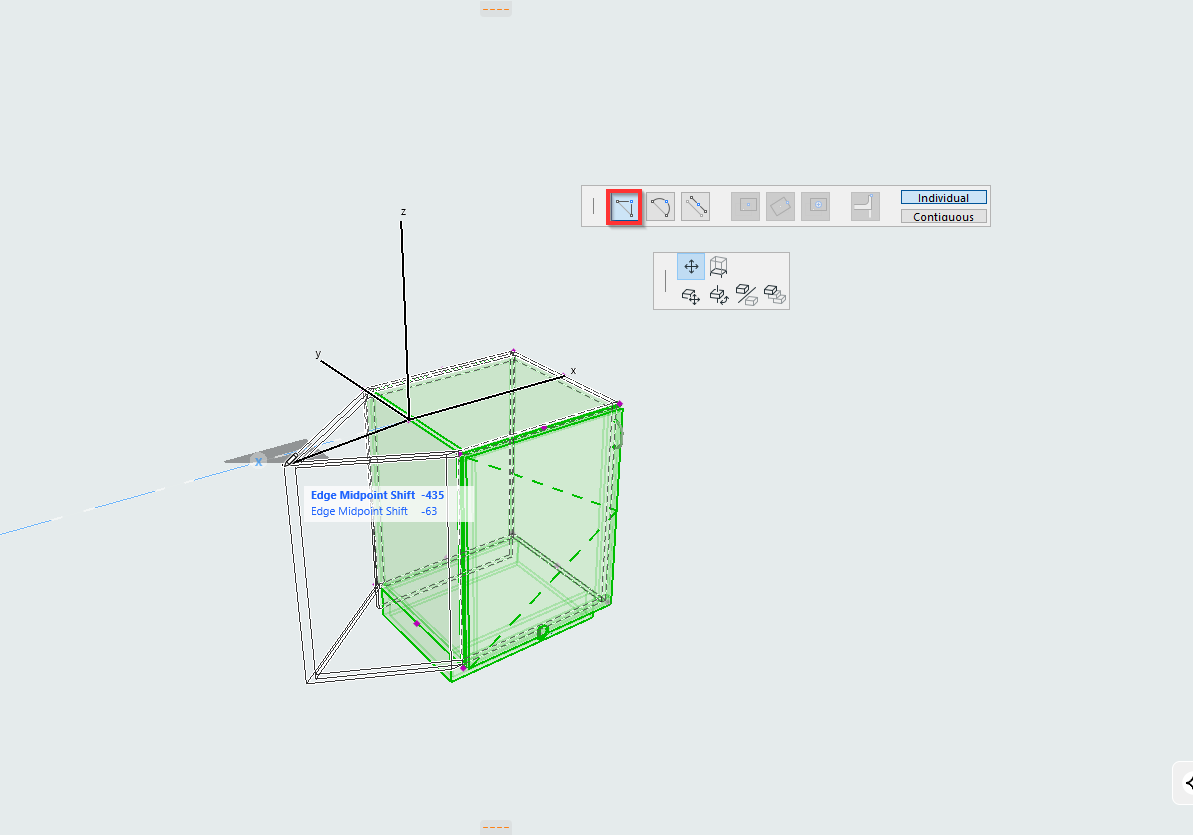

Polygon editing:

This will introduce more vertices to the Cabinet.

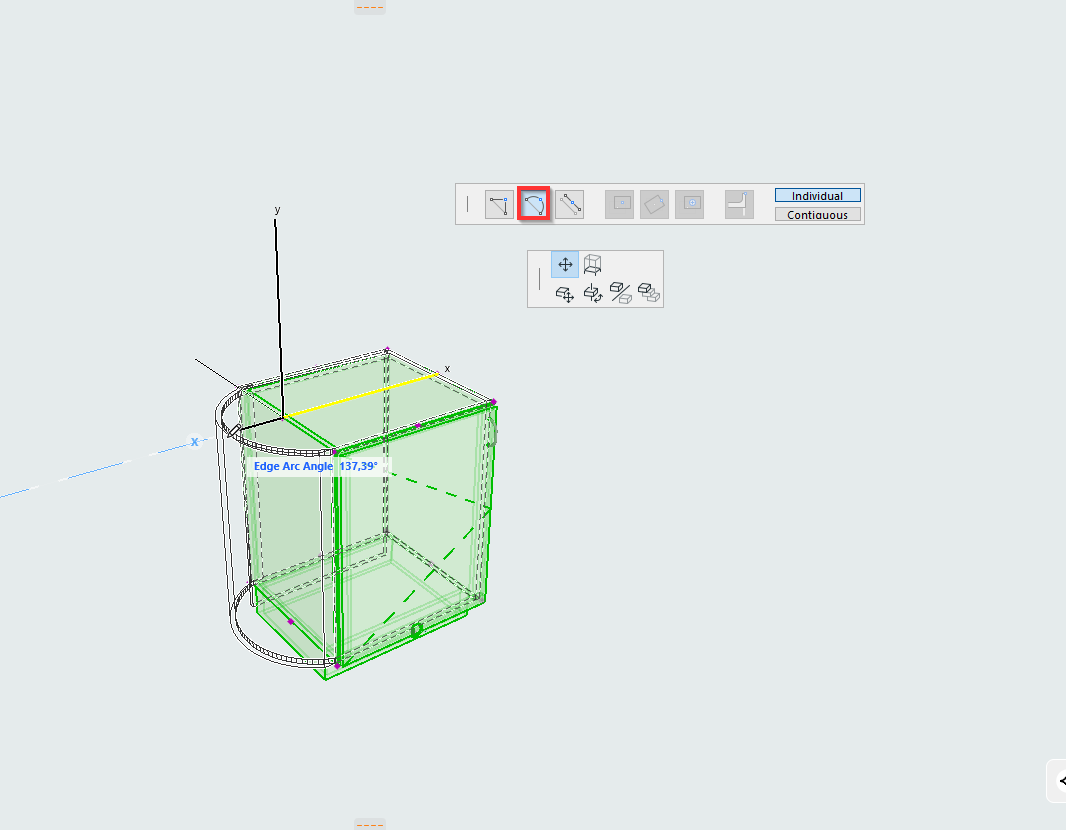

Curve editing:

This will introduce a Curve on the selected edge.

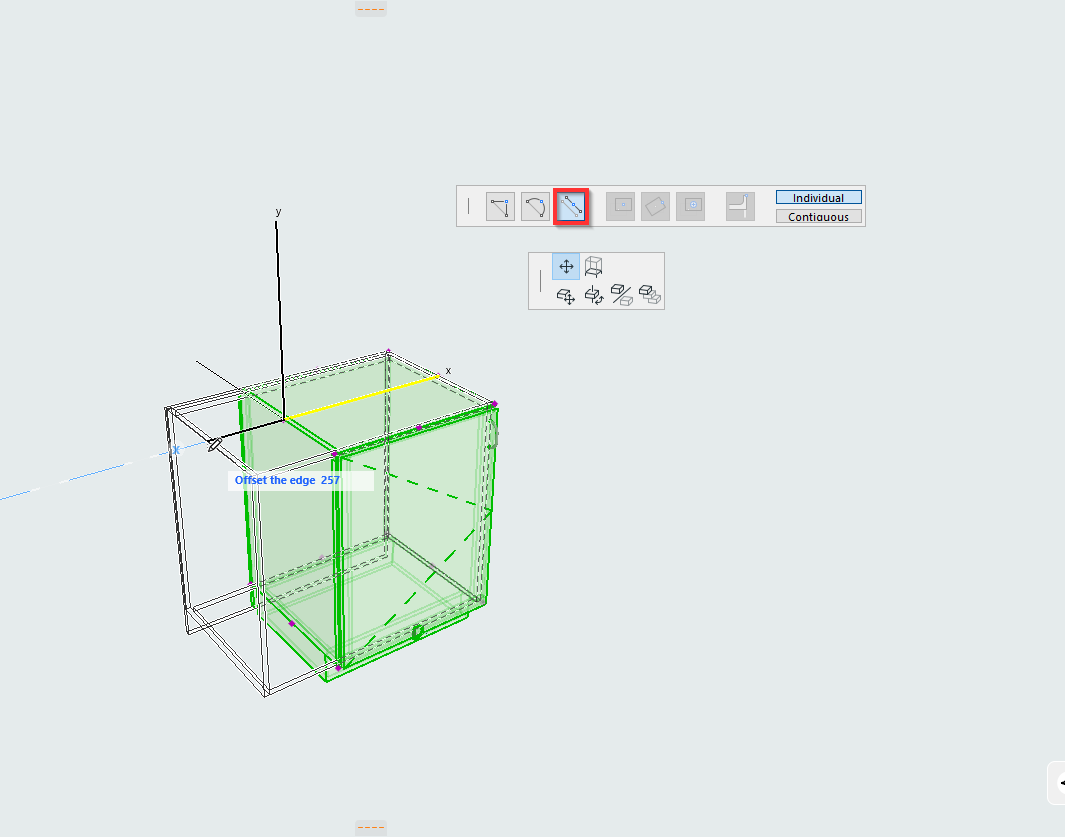

Offset or Stretch editing

This will offset the edge by the required amount.

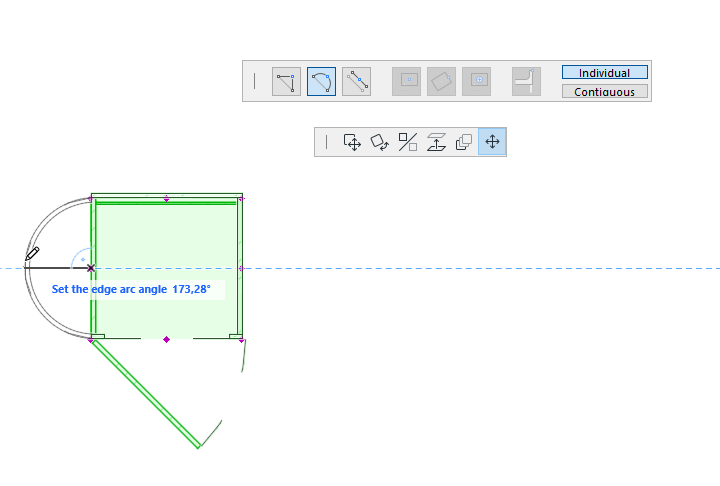

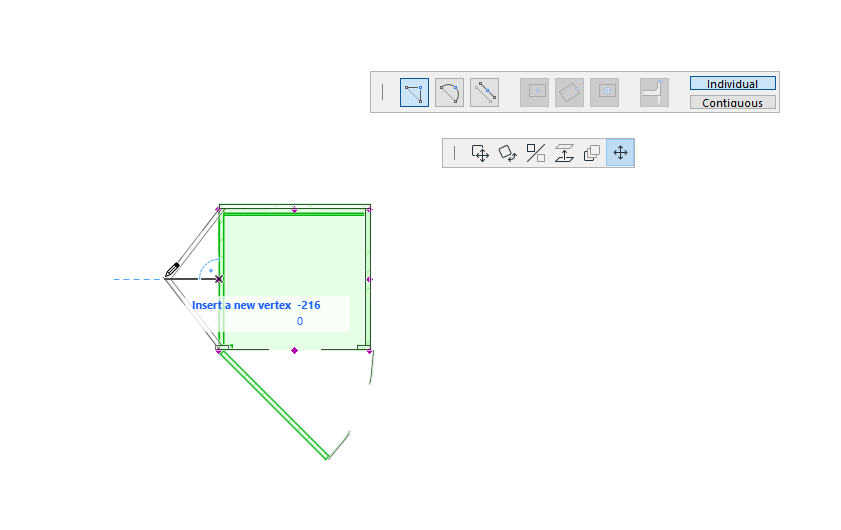

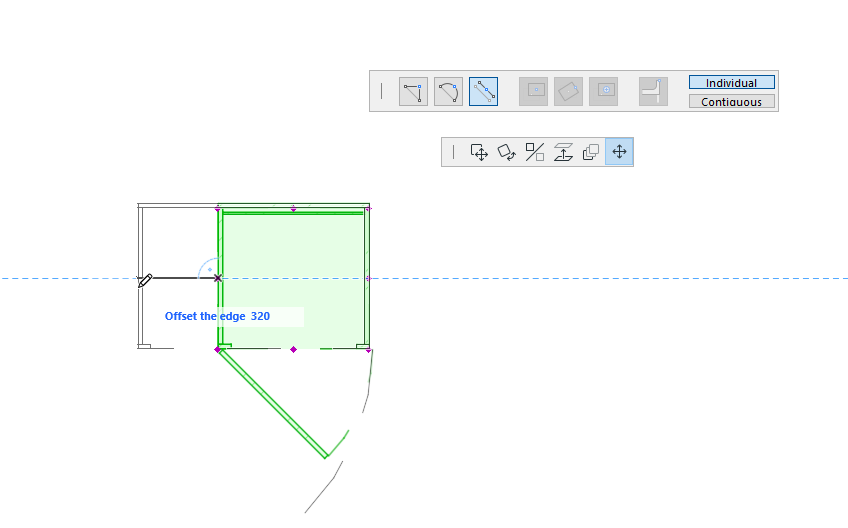

These can also be applied in plan view:

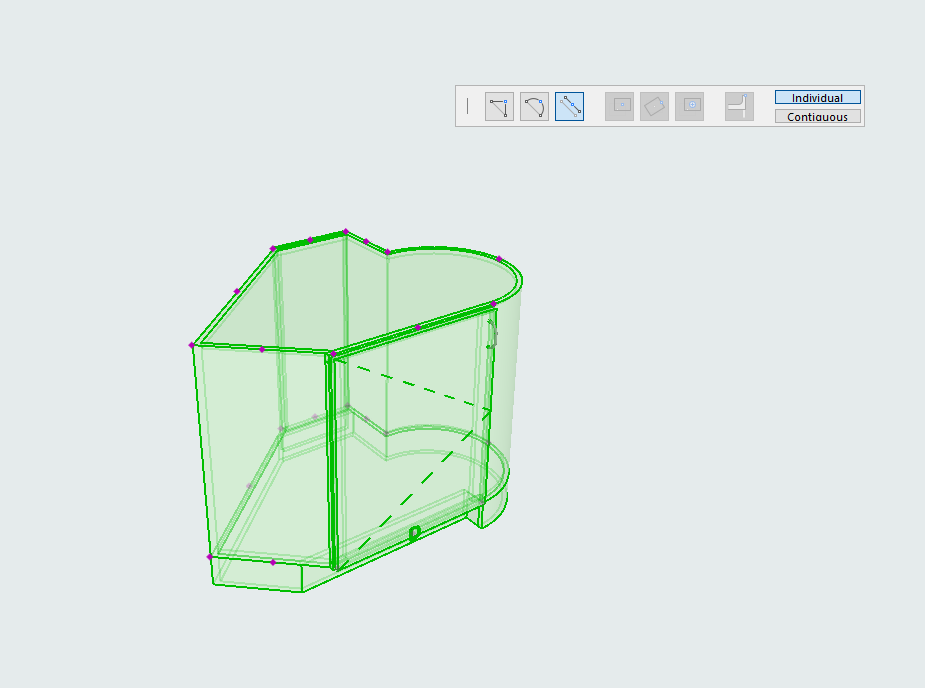

Below all three have been applied to different edges.
